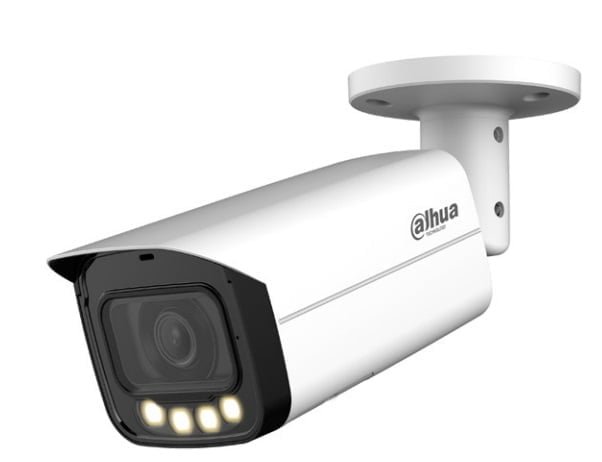

Camera IP Full Color 4.0 Megapixel IP DAHUA DH-IPC-HFW5449T-ASE-LED

Camera IP Full Color 4.0 Megapixel IP DAHUA DH-IPC-HFW5449T-ASE-LED

– Camera có Cảm biến hình ảnh : Cảm biến CMOS kích thước 1/1.8 inch.

– Độ phân giải Của Camera Quan Sát: 4.0 Megapixel.

– Độ nhạy sáng tối thiểu: 0.0005Lux@F1.0.

– Ống kính: 2.8mm, 3.6mm, 6mm.

– Tầm quan sát đèn LED:  60m (4 bóng LED)

– Các tính năng: Chống ngược sáng WDR (140dB), chế độ ngày đêm (Color/B/W), chống nhiễu hình ảnh 3DNR, chống ngược sáng BLC.

– Tích Hợp chức năng bảo vệ vành đai: Tripwire, intrusion, phát hiện di chuyển nhanh, phát hiện lãng vãng, phát hiện tụ tập đám đông, phát hiện đỗ xe trái phép.

– Tích Hợp chụp ảnh khuôn mặt (face detection) kèm phân tích thuộc tính khuôn mặt.

– Tích Hợp chức năng people counting, heatmap, phát hiện vật thể bỏ rơi, vật thể bị lấy mất, SMD 3.0.

– khe cắm thẻ nhớ lên đến 256GB.

– Chuẩn tương thích ONVIF.

– Camera Tích hợp Mic.

– Tích Hợp 1 cổng vào và 1 cổng ra audio.

– Tích Hợp 1 cổng vào và 1 cổng ra alarm.

– Đạt Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

– Tích Hợp chức năng ePoE.

– Điện áp: 12 VDC/PoE (802.3af).

– Nhiệt độ hoạt động: -40°C to +60°C.

– Chất liệu: Kim loại.

Đặc tính kỹ thuật của Camera Ip Dahua

Camera
Image Sensor	1/1.8 inch CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.0005 Lux@F1.0
S/N Ratio	> 56 dB
Illumination Distance	60m (196.85 ft)
Illuminator On/Off Control	Auto; manual
Illuminator Number	4 (Warm light)
Pan/Tilt/Rotation Range	Pan: 0°-360° Tilt: 0°-90° Rotation: 0°-360°
Lens
Lens Type	Fixed-focal
Lens Mount	M16
Focal Length	2.8 mm; 3.6 mm; 6 mm
Max. Aperture	F1.0
Field of View	2.8 mm: Horizontal 107° × Vertical 60° × Diagonal 135° 3.6 mm: Horizontal 95° × Vertical 51° × Diagonal 116° 6 mm: Horizontal 58° × Vertical 31° × Diagonal 69°
Iris Control	Fixed
Close Focus Distance	2.8 mm: 1.6 m (5.2 ft) 3.6 mm: 2.6 m (8.5 ft) 6 mm: 5.1 m (16.7 ft)
Smart Event
IVS	Abandoned object; missing object
Heat Map	Yes
Professional, intelligent
IVS (Perimeter Protection)	Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face Detection	Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting	Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; faceenhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Audio
Built-in MIC	Yes
Audio Compression	PCM; G.711a; G.711Mu; G.726; G.723
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec	Smart H.265+/H.264+
Video Frame Rate	Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps) Sub stream: D1 (1 fps–25/30 fps) Third stream: 1080p (1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability	3 streams
Resolution	4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 3 kbps-20480 kbps H.265: 3 kbps-20480 kbps
Day/Night	Color/B/W
BLC	Yes
HLC	Yes
WDR	140dB
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto; manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (ROI)	Yes (4 areas)
Defog	Yes
Image Rotation	0°/90°/180°/270°
Mirror	Yes
Privacy Masking	8 areas
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management
Network
Network Port	RJ-45 (10/100 Base-T)
SDK and API	Yes
Cyber Security	Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol	IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P
User/Host	20 (Total bandwidth: 80 M)
Storage	FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Browser	IE: IE8 and later Chrome Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Client	iOS; Android
Certification
Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: 5mA 3V-5V DC
Alarm Output	1 channel out: 300mA 12V DC
Power
Power Supply	12V DC (±30%)/PoE (802.3af)/ePoE
Power Consumption	Basic: 2.6 W (12 VDC); 3.4 W (PoE) Max. (H.265 + 3 streams + intelligence + LED): 7.3 W (12VDC); 8.5W (PoE)
Environment
Operating Temperature	-40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Temperature	-40°C to +60°C (–40°F to +140°F)
Protection	IP67
Structure
Casing	Metal
Product Dimensions	244.1 mm × 79.0 mm × 75.9 mm
Net Weight	0.815 kg

– Bảo hành Chính Hãng: 24 tháng.
